3.2 Neocision Certified Vacuum Oven

Price: $6,941.51

Part Number: BVVNEOVO32

Availability: In-stock

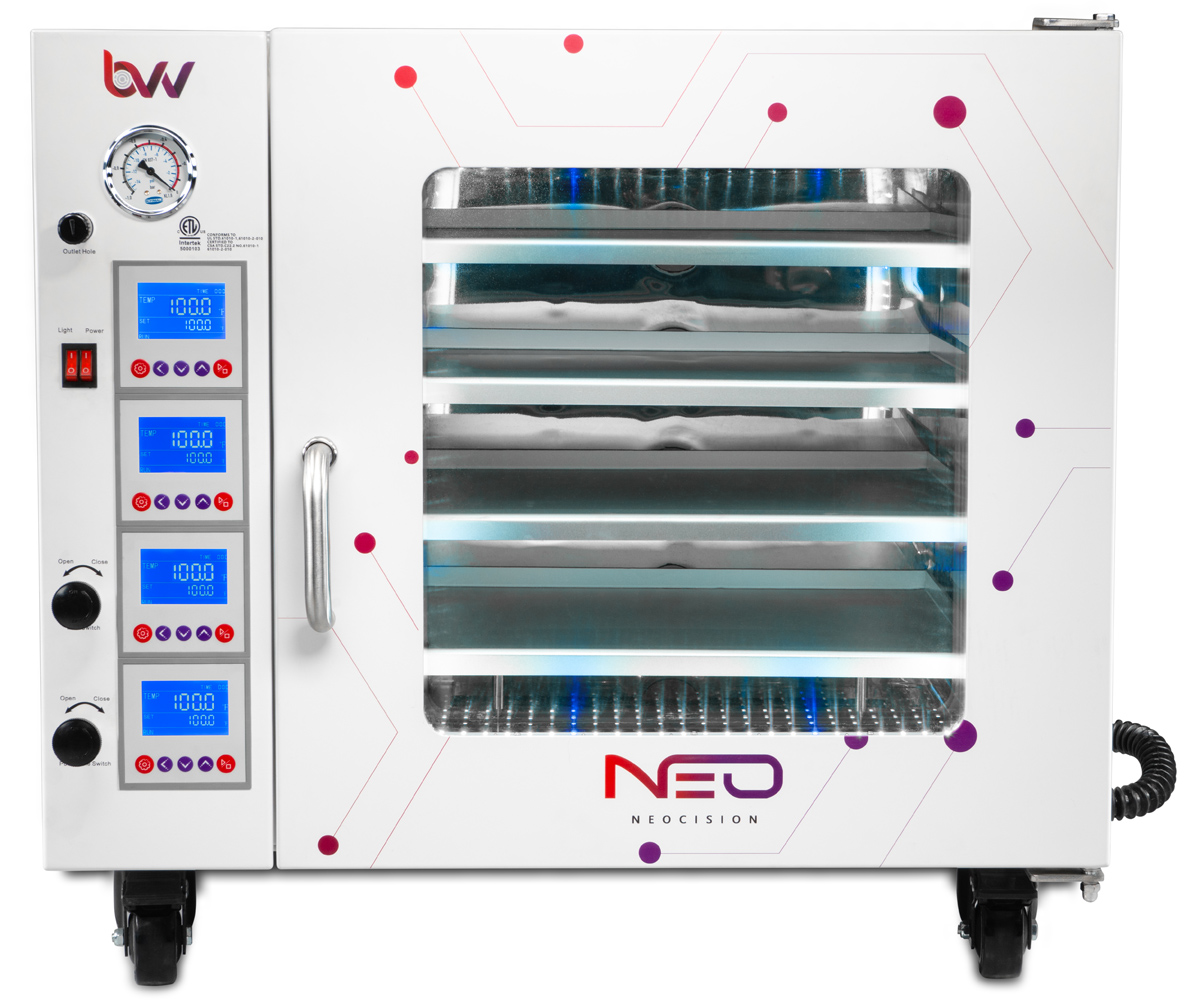

Best Value Vacs 3.2 cu ft Neocision Lab Certified Vacuum Oven

Contact HTG Supply

3.2 cu ft Neocision Lab Certified Vacuum Oven

Best Value Vacs vacuum ovens are purpose-built to perform degassing / purging of light hydrocarbon solvents. The oven applies a gentle heat under reduced pressure conditions to expedite solvent degassing while simultaneously preserving color, aroma, and overall solute quality. BVV has applied their extensive vacuum expertise and industry experience to produce a series of ovens designed exactly for your needs: low consumption, high-throughput, and reliable operation.

Features:
• 3.2 cu ft interior space
• 4 Individually heated shelves
• Independent PID for each shelf
• LED lighting in door
• Automatic overtemperature shutoff
• Built-in resettable circuit breaker
• Heavy duty casters with adjustable leveling feet
• ETL Certified

Benefits:
• Shelf heating yields faster purge times
• Removes residual solvent to low ppm
• Each shelf can be set to different temperatures
• Allows purging of multiple runs of the extractor

Includes:
• 3.2cf Vacuum Oven
• KF-25 to ¼” JIC adapter with clamp
• Â¼â€ HVAC hose

Technical Specs:
• Dimensions: 30” Width, 27” Depth, 27” Height
• Weight: 260 lbs
• Voltage: 120V
• Frequency: 60Hz
• Power: 1050W
• Current: 16A
• Vacuum Range: -1 – 0 bar/-14.5 – 0 psi
• Operating Temperature Range: RT + 18 °F – 212°F
• 304 Stainless Steel Interior Chamber
• Temperature Stability:  ±1.0°F
• Temperature Uniformity: within 4% of temperature setpoint
• Heat-Up Time: 20 minutes to preheat.
• Ultimate Vacuum: <500 µmHg / mTorr / micron
• Time to Vacuum: 5 minutes to -1 bar using 12cfm 2-stage vacuum pump
• Shelf Capacity: 293 in2

Sold in Quantity of:  1

Warranty Offered:

Weight 385 lbs
Dimensions 31 × 35 × 34 in
